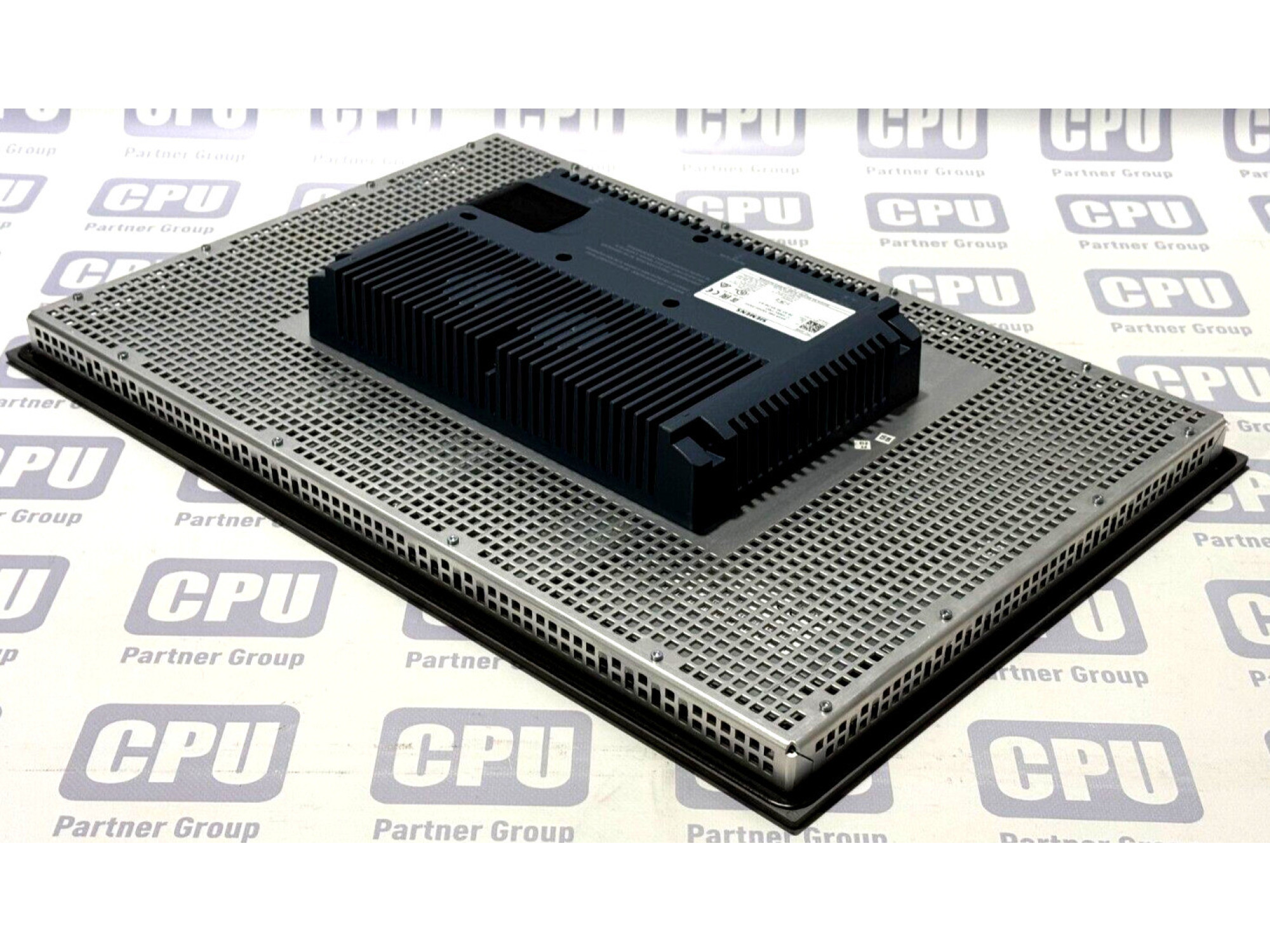

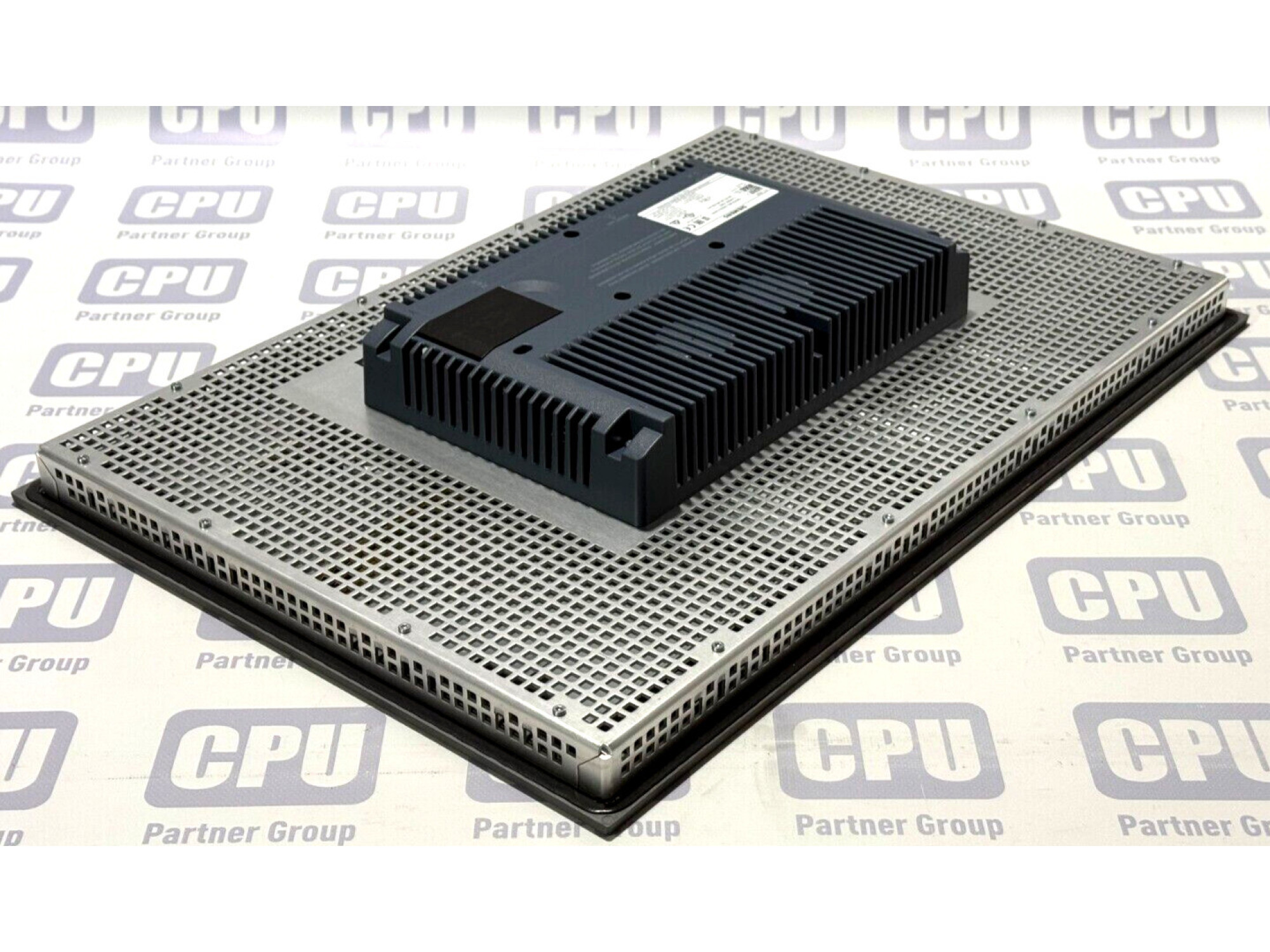

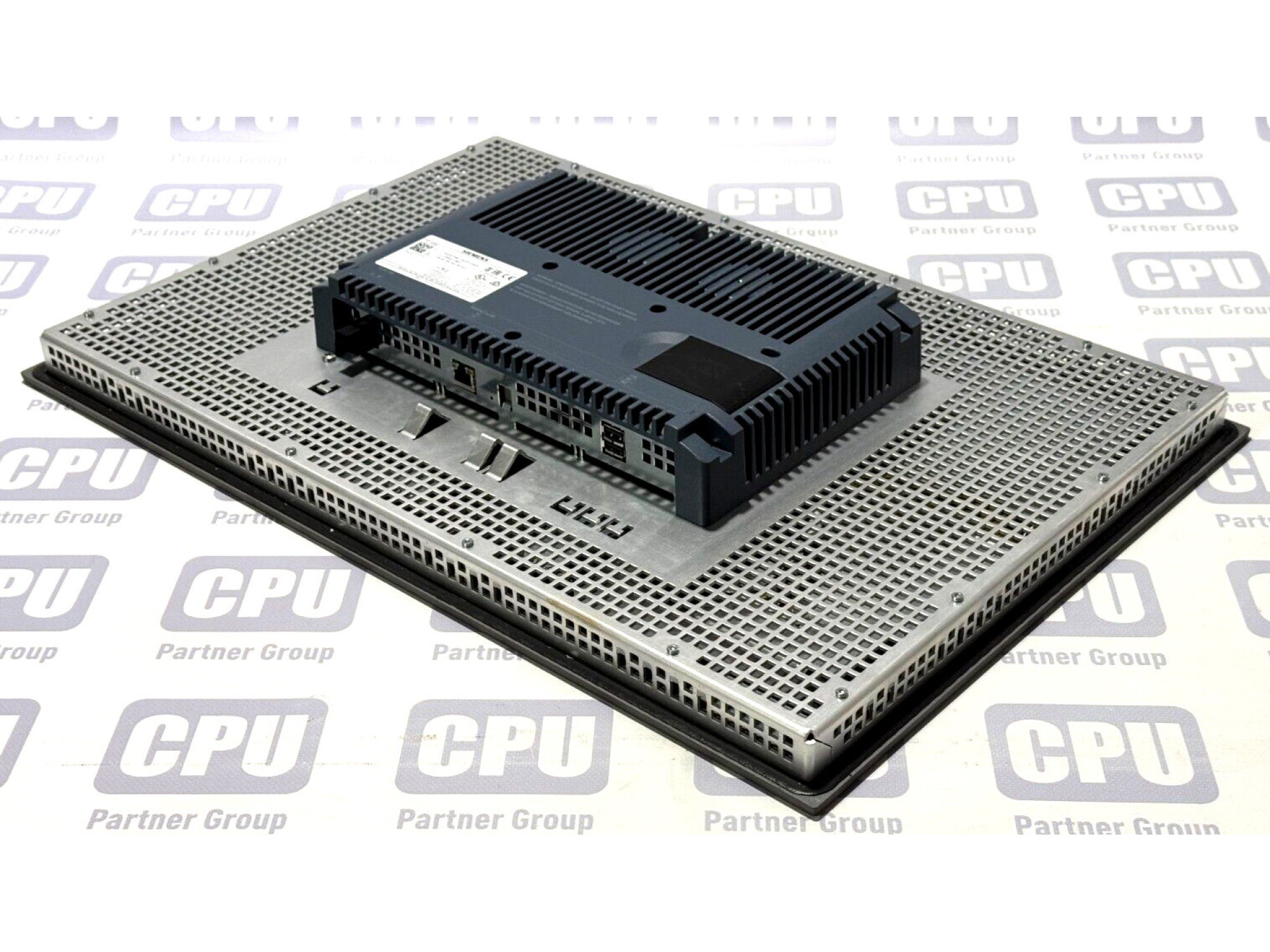

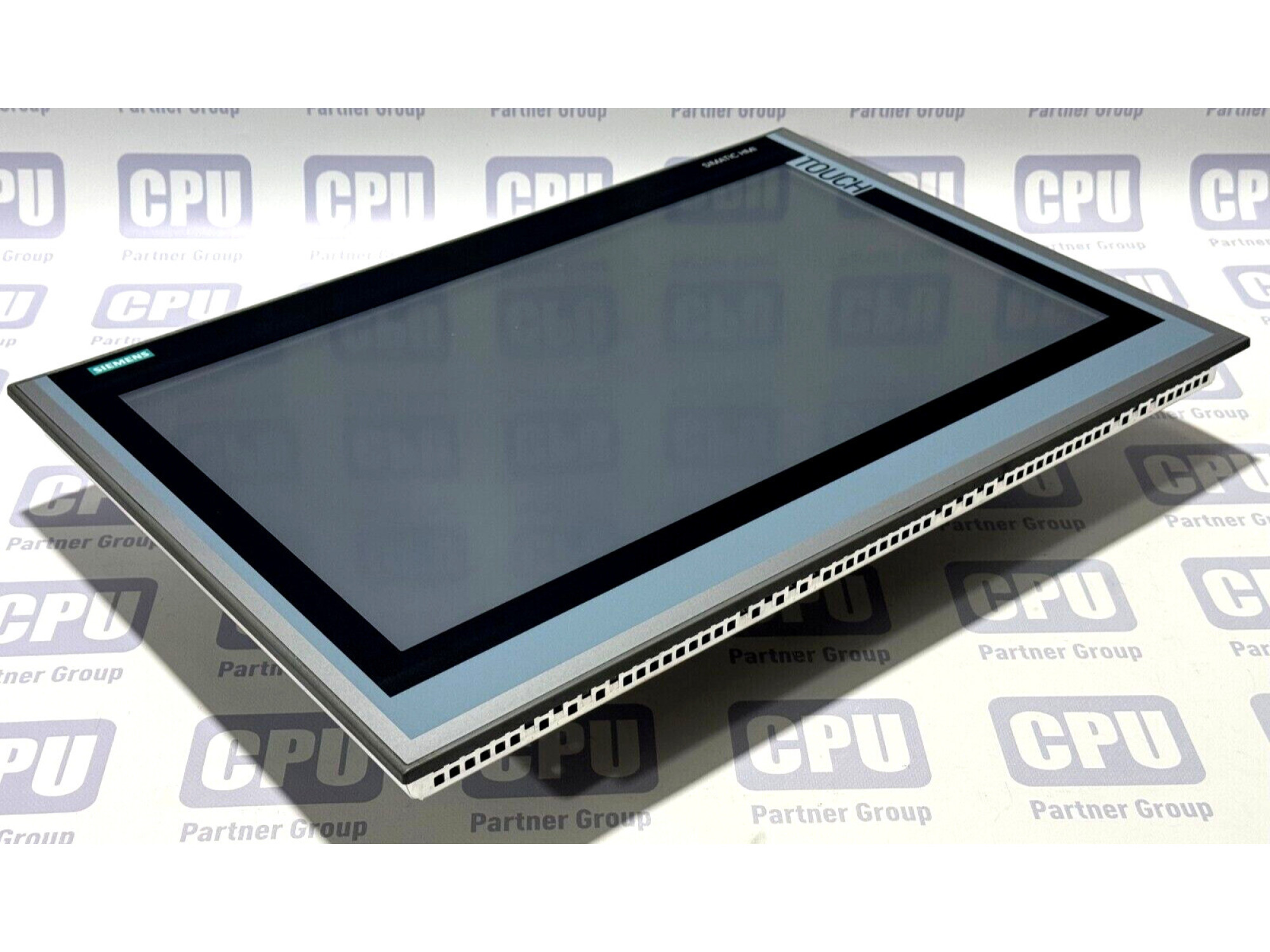

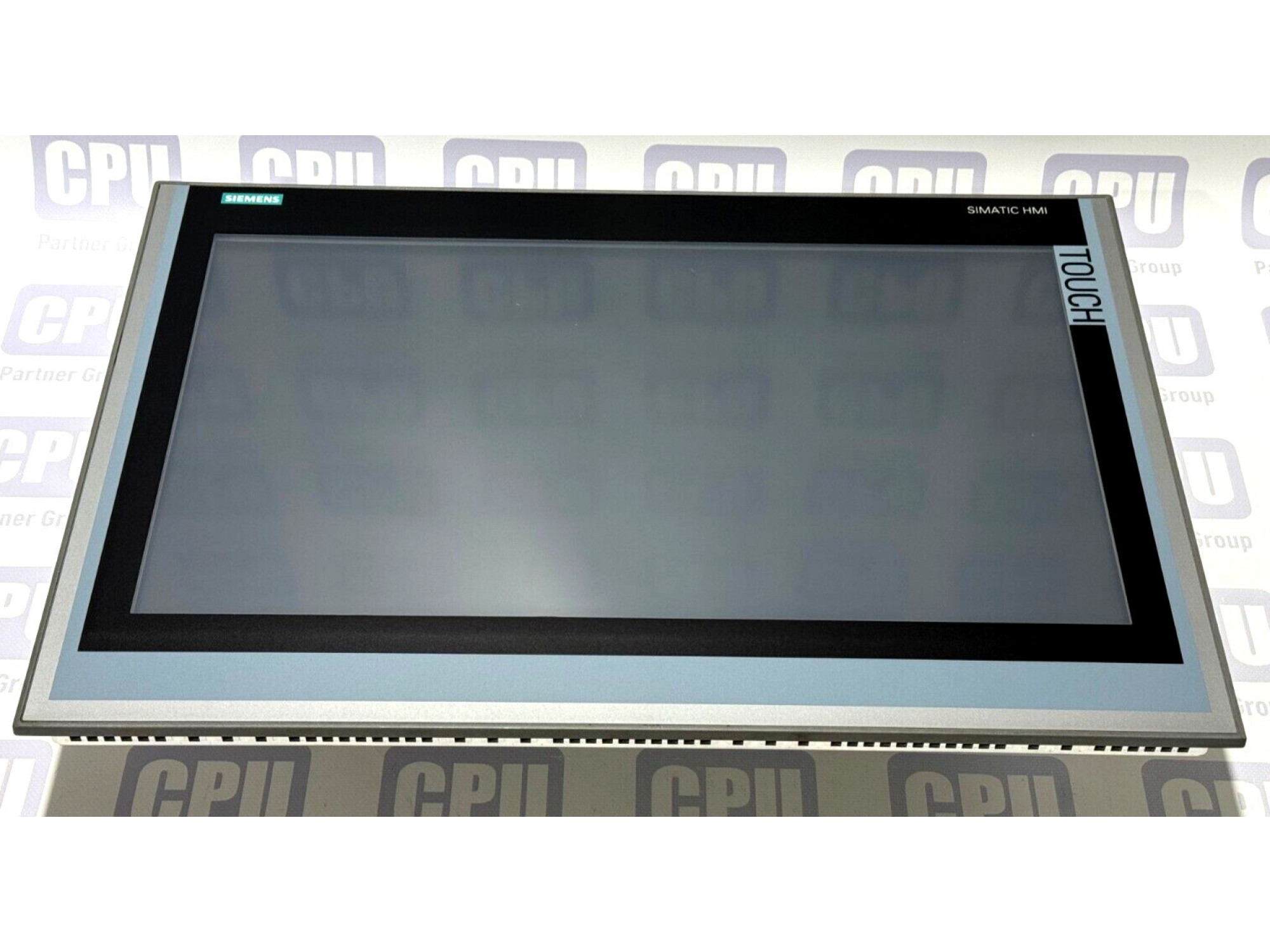

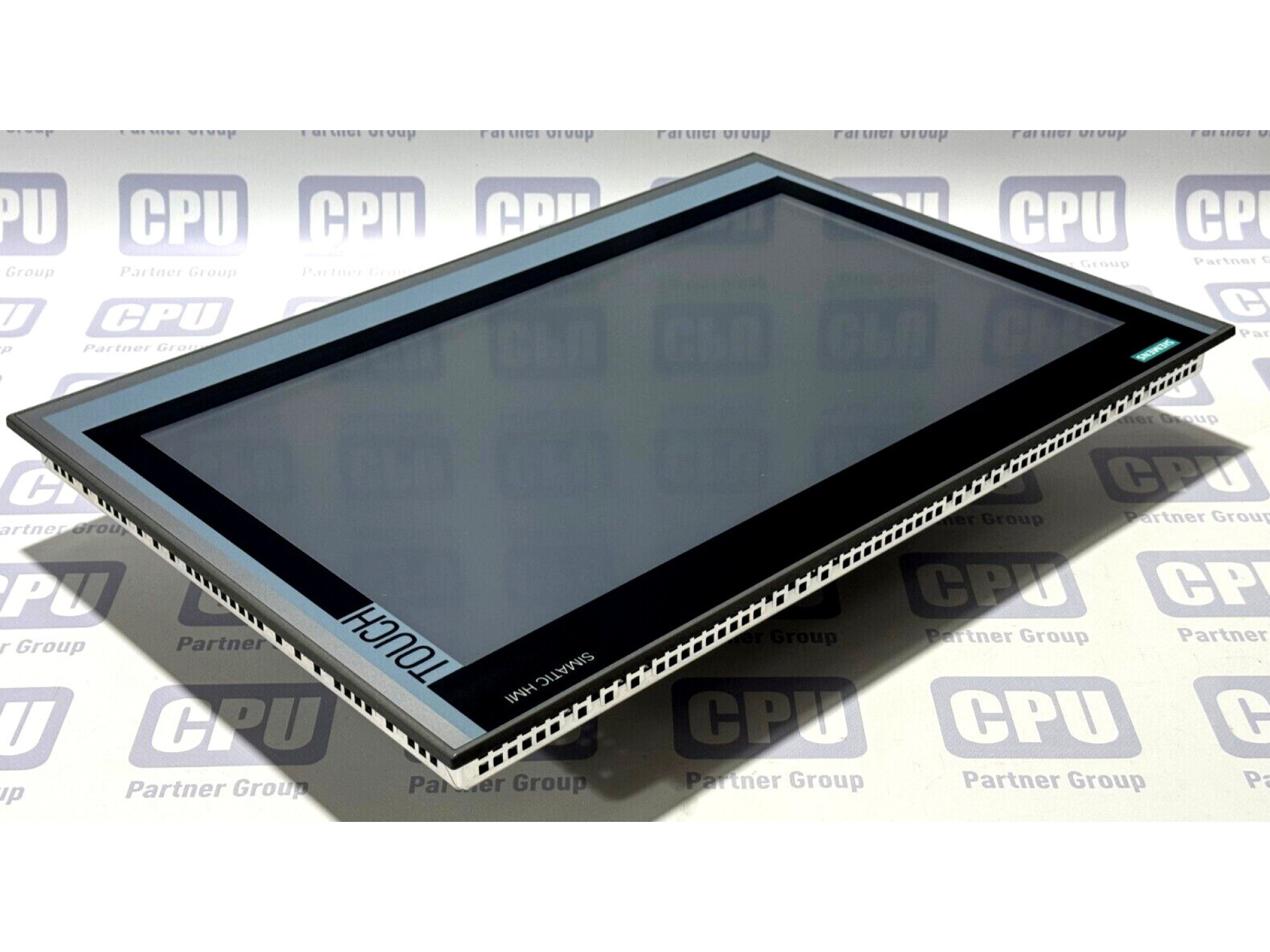

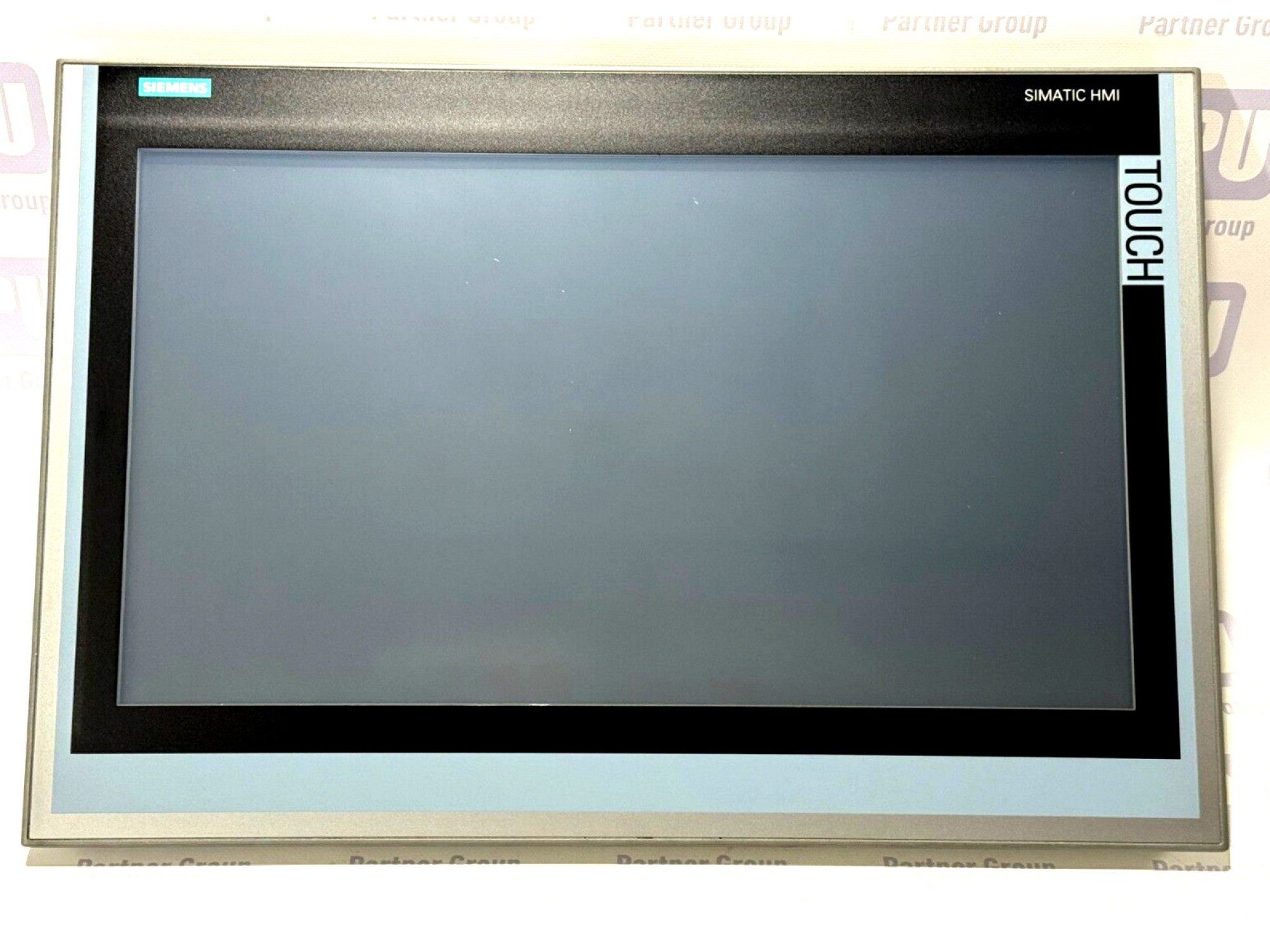

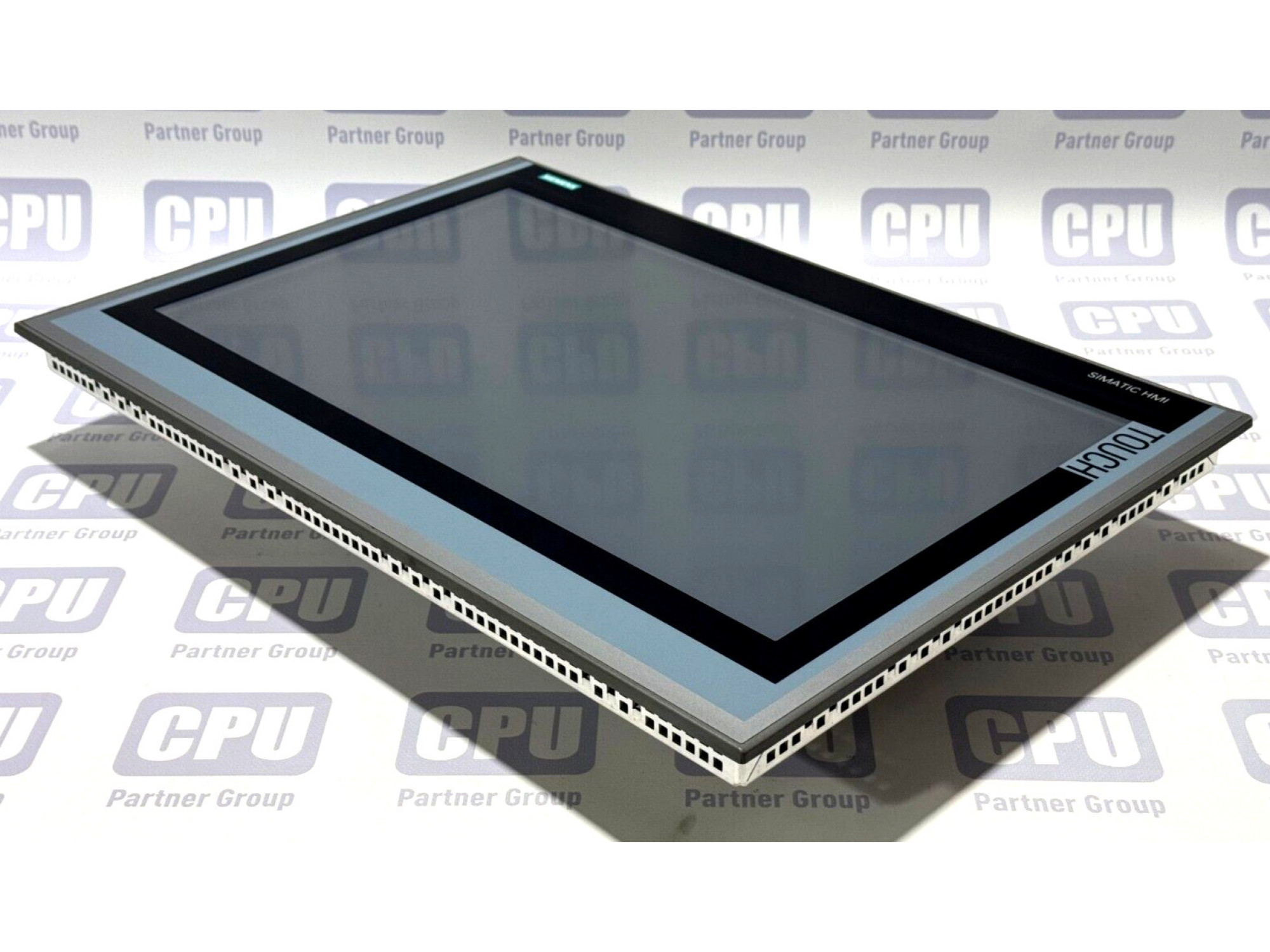

Siemens SIMATIC ITC2200 Industrial Thin Client, 22" Full HD, 6AV6646-1AD22-0AX0 1 pcs

The Siemens SIMATIC ITC2200 (part number: 6AV6646-1AD22-0AX0) is a reliable Industrial Thin Client equipped with a widescreen touch display. The device is designed for visualization and control tasks in industrial automation systems. It functions as a client device, connecting to a server via RDP, VNC, SmartServer protocols, or a web interface, which ensures flexible integration into existing systems.

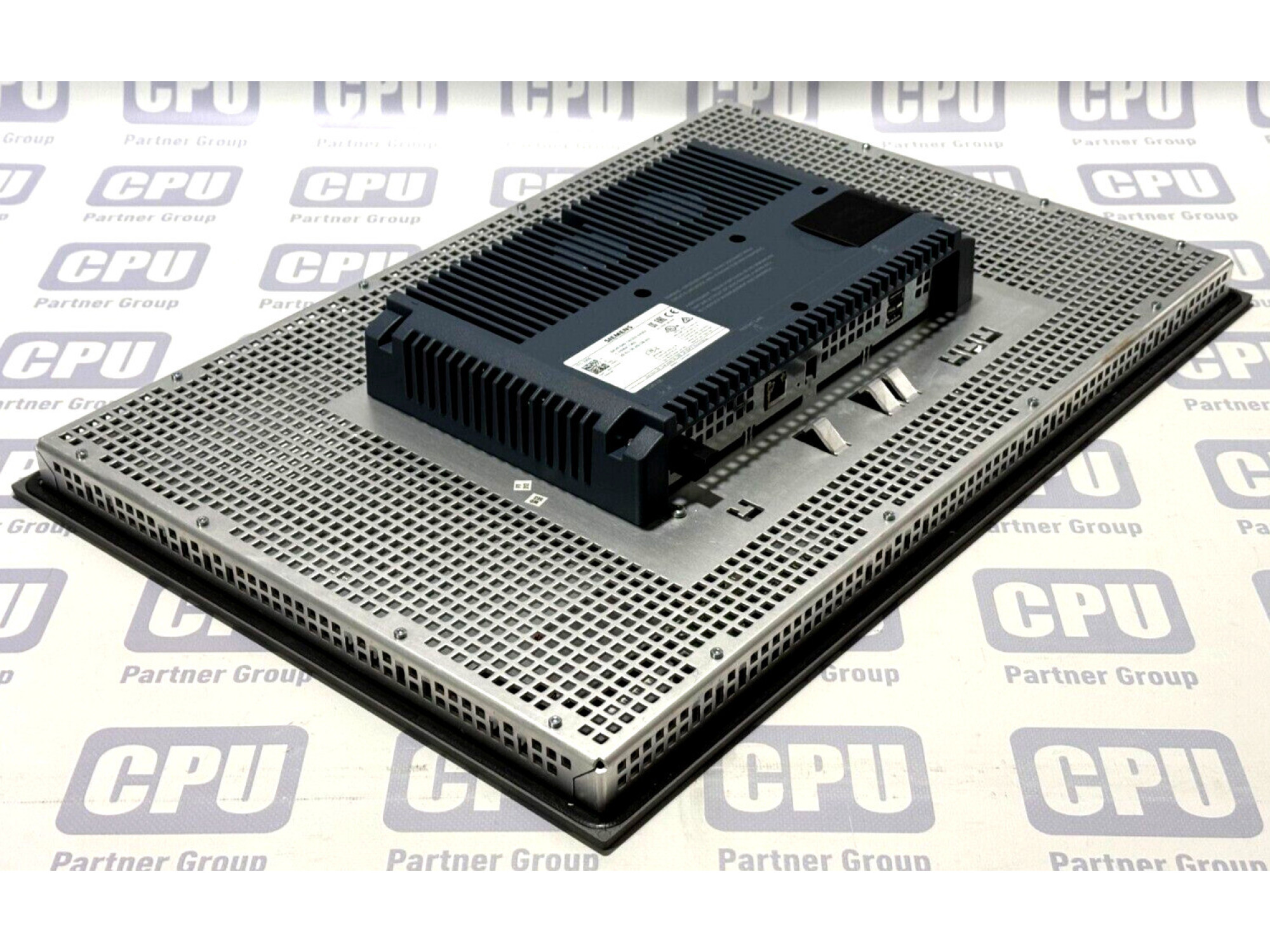

This model is a built-in unit, designed for mounting in a control panel or cabinet.

Key Features:

• Manufacturer: Siemens
• Model: SIMATIC ITC2200

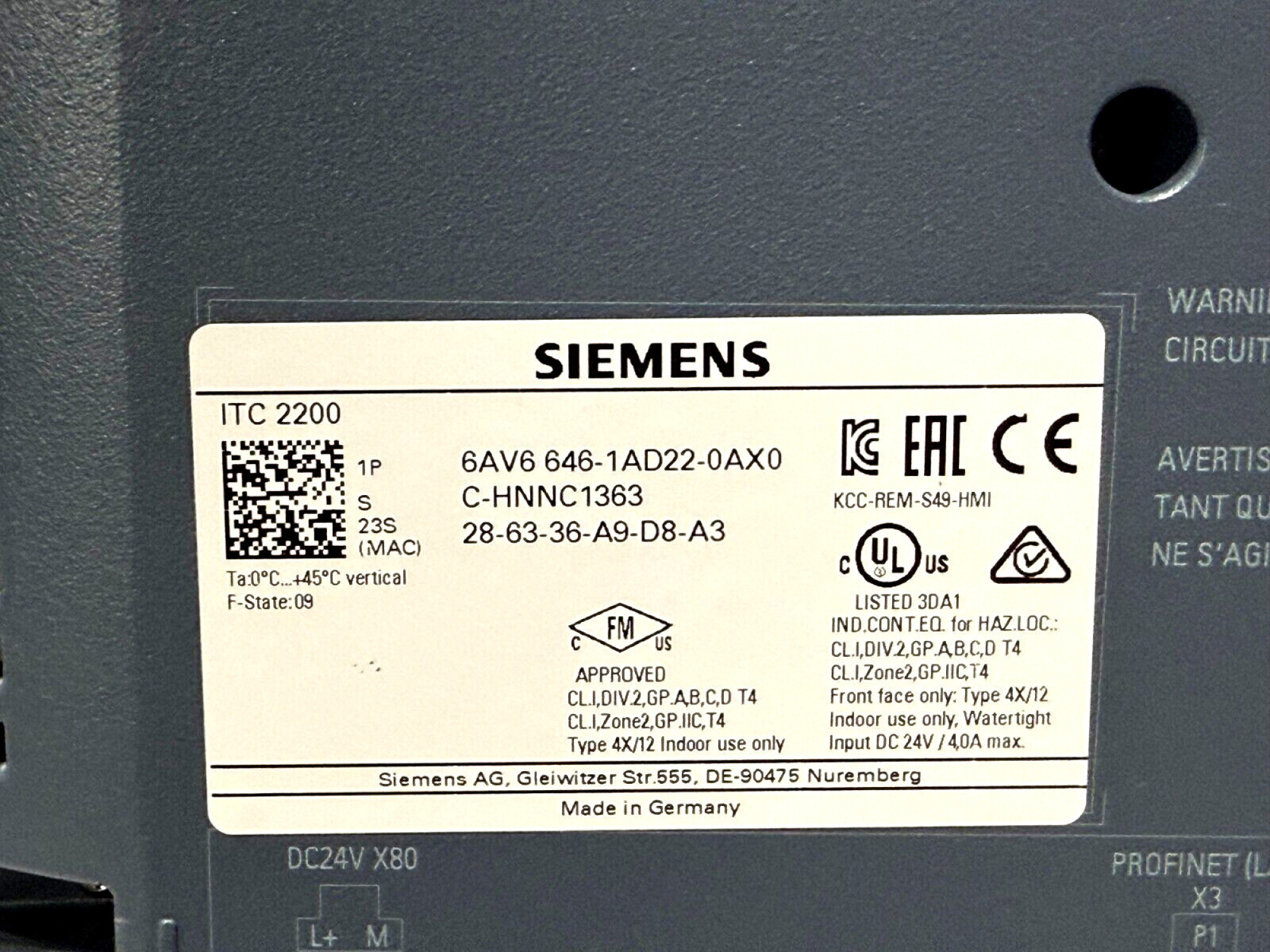

• Part Number: 6AV6646-1AD22-0AX0

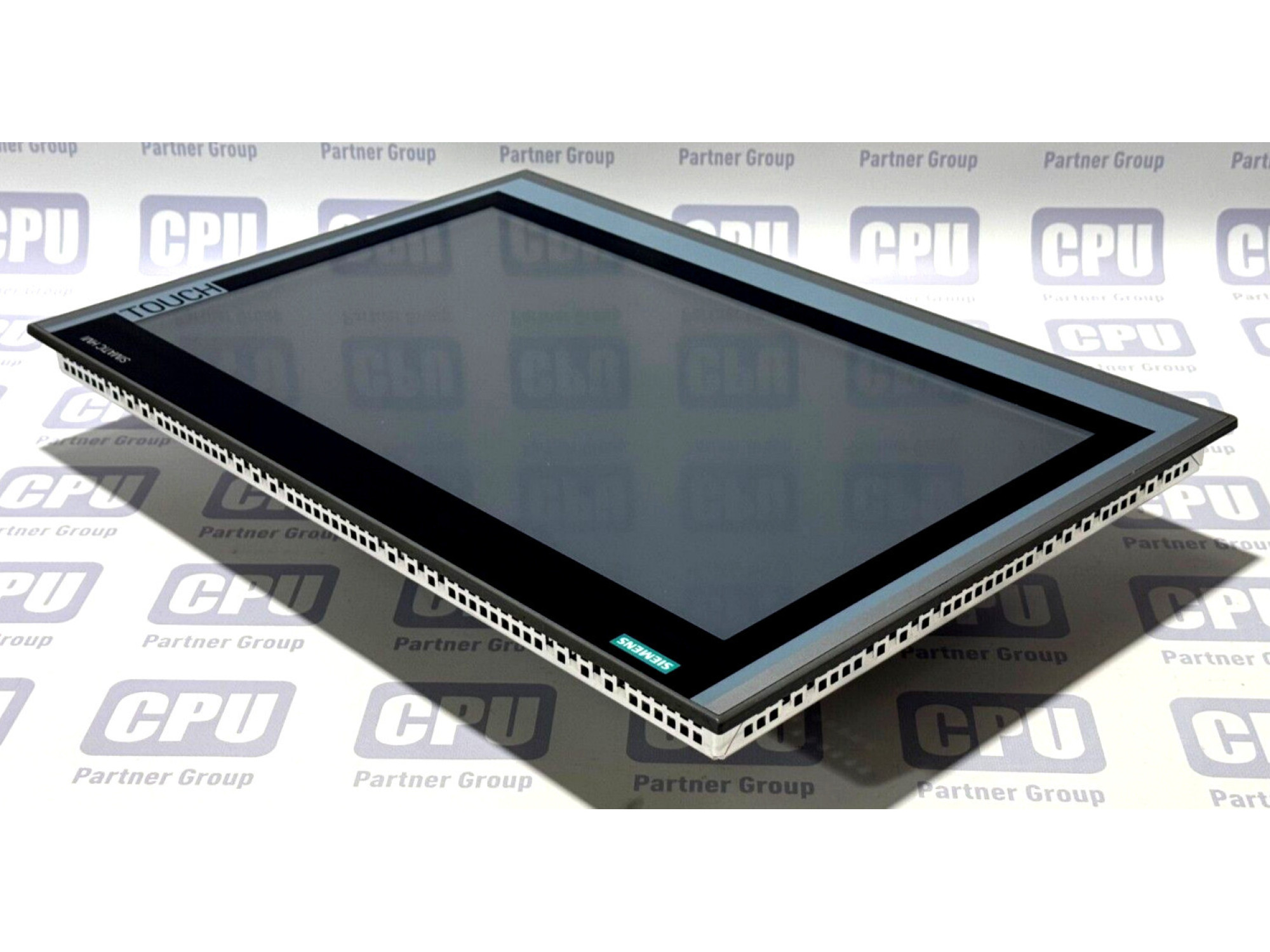

• Display:
  • Type: 21.5-inch (22") widescreen TFT display with LED backlighting.
  • Resolution: Full HD (1920 x 1080 pixels).
  • Number of colors: 16.7 million.
  • Brightness: 250 cd/m².
  • Backlight MTBF: 30,000 hours at 25°C.
  • Controls: Analog-resistive single-touch screen.
• Materials and Construction:
  • Front enclosure material: Aluminum.

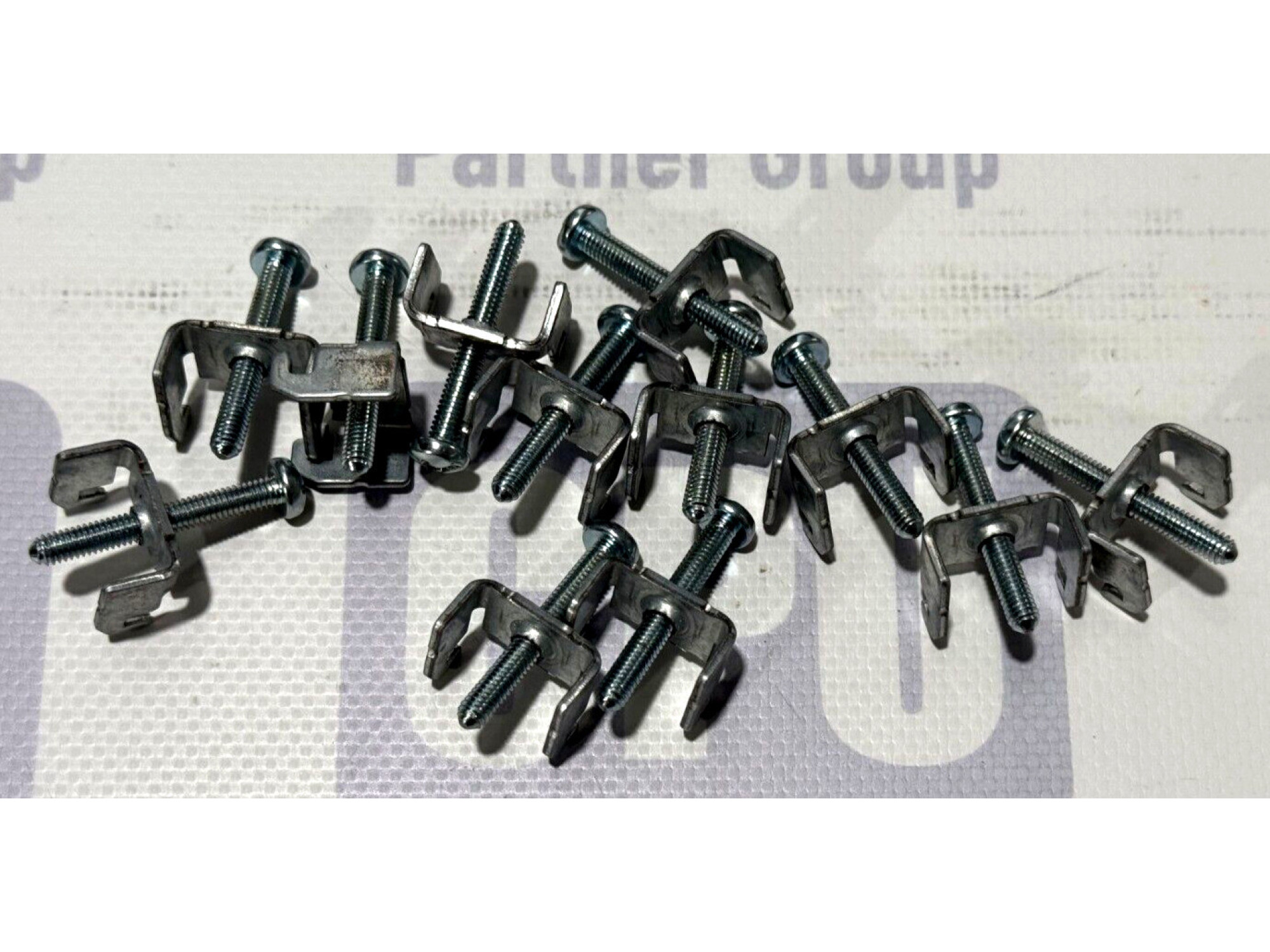

  • Installation type: Built-in unit.
  • Degree of protection: IP65 at the front, IP20 at the rear.
  • NEMA protection: Type 4 on the front panel.

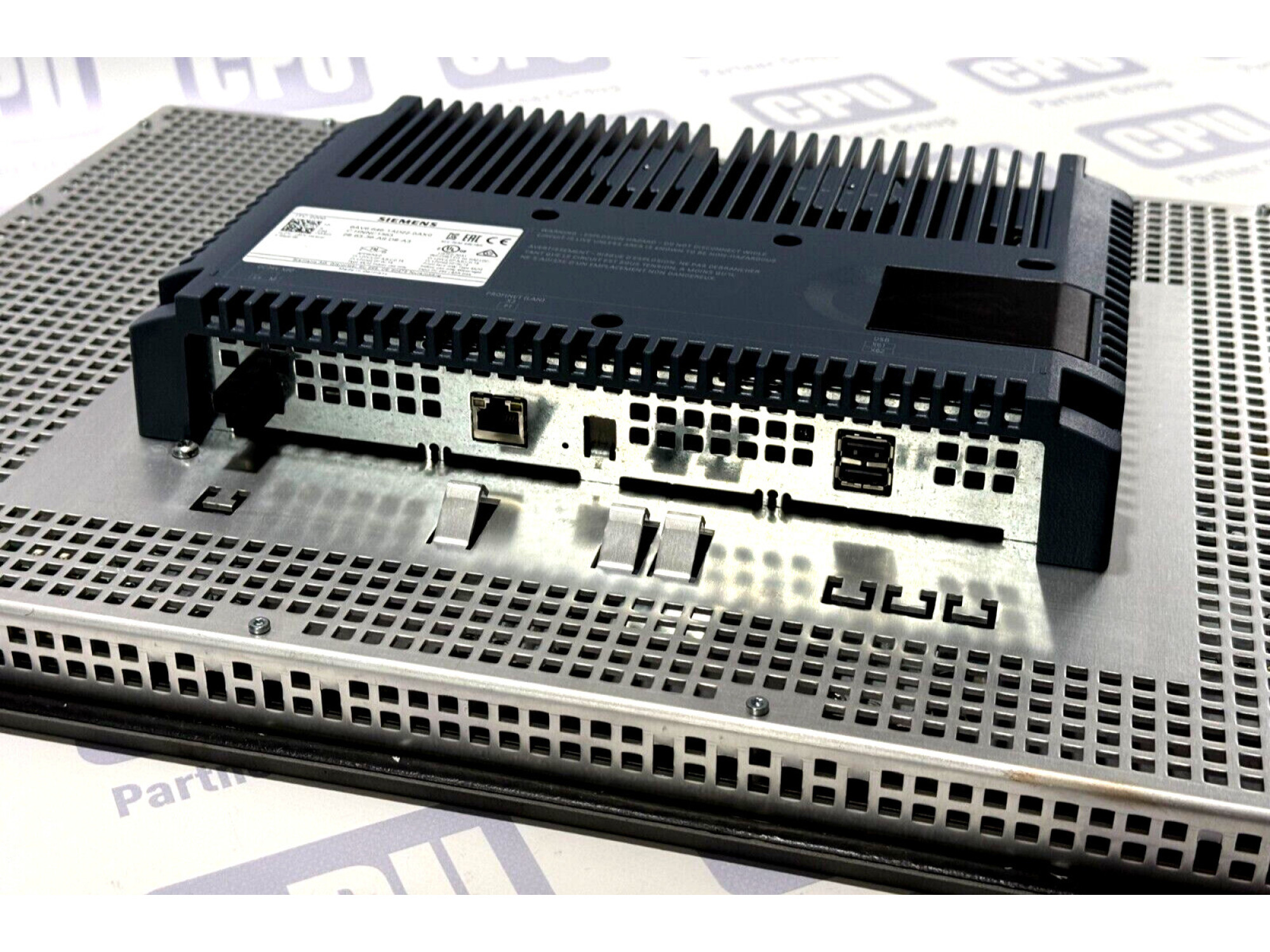

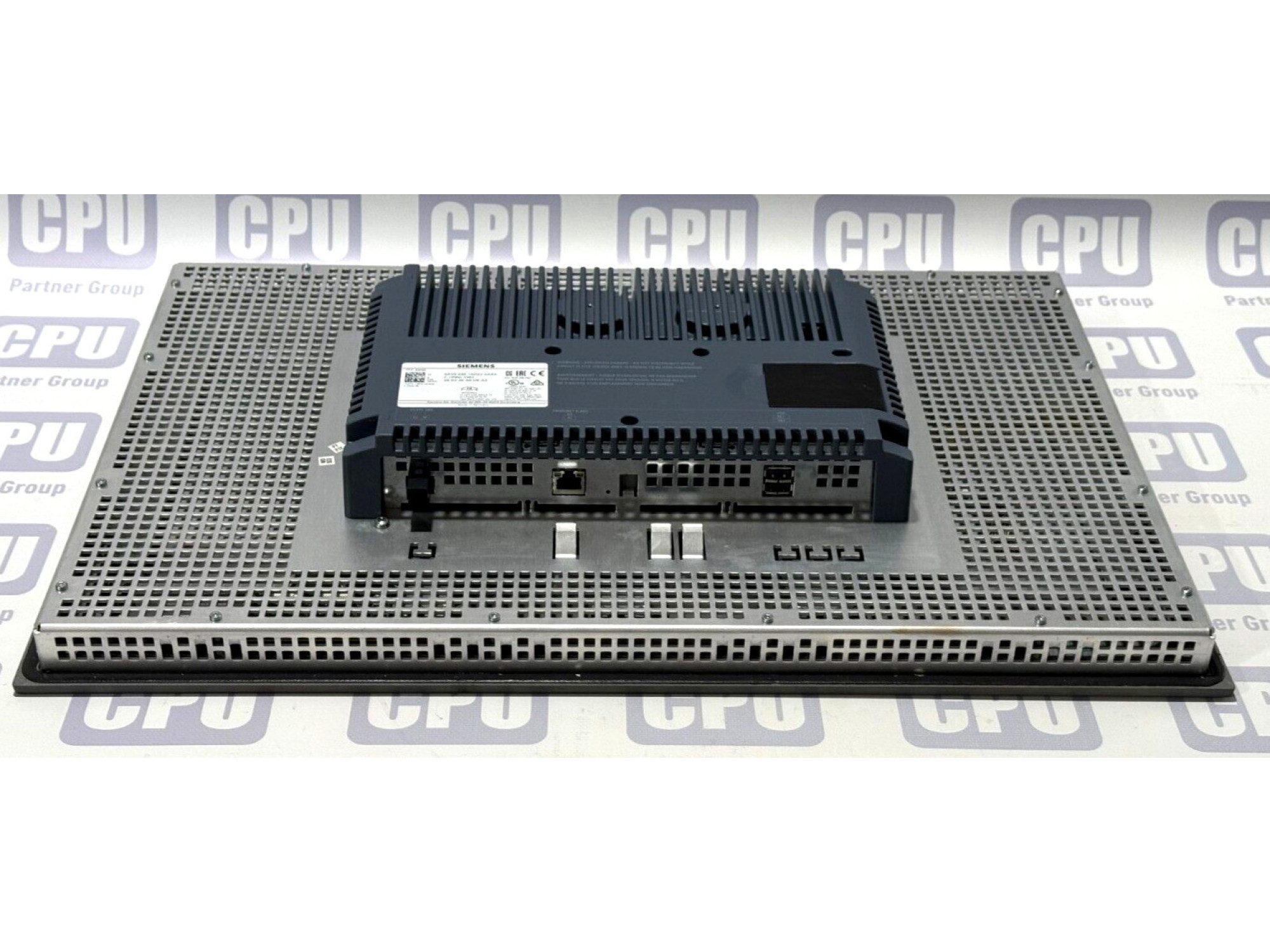

• Interfaces:
  • Industrial Ethernet: 1 port with a maximum transmission rate of 1000 Mbit/s.

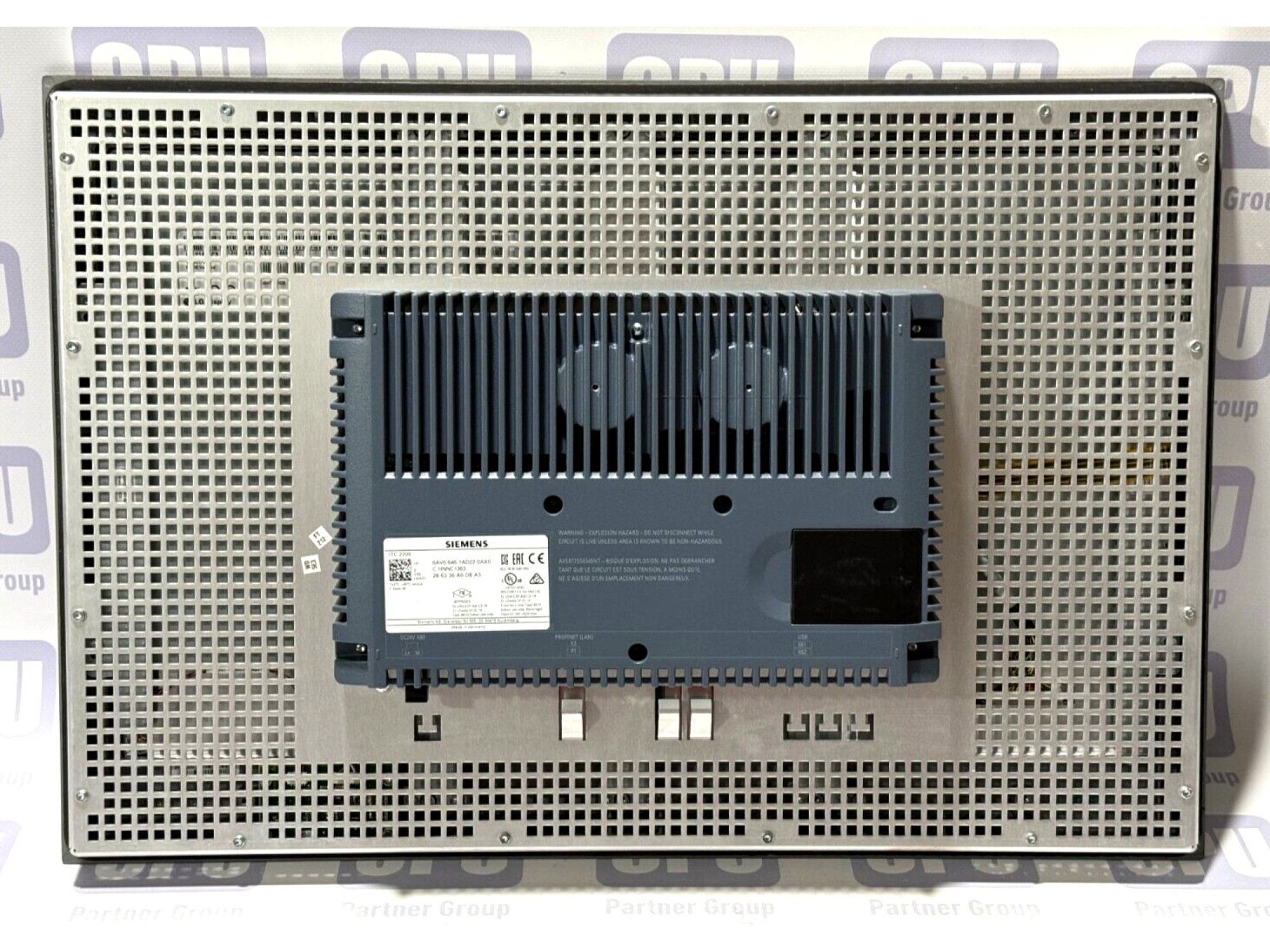

  • USB: 2 USB ports on the rear.
• Technical Parameters:
  • Supply voltage: Nominal 24 V DC, permissible range from 19.2 V to 28.8 V.
  • Maximum current consumption: 2.2 A.
  • Operating temperature: from 0°C to +45°C.
  • Storage temperature: from -20°C to +60°C.
• Dimensions and Weight:
  • Housing dimensions (W x H): 560 mm x 380 mm.
  • Mounting cutout (W x H): 542 mm x 362 mm.
  • Overall depth: 75 mm.
  • Weight: 7.1 kg (without packaging).

Software and Protocols:

• Supported Protocols: RDP, VNC, Sm@rtServer.
• Network Protocols: TCP/IP, DHCP, SNMP, DCP, LLDP.

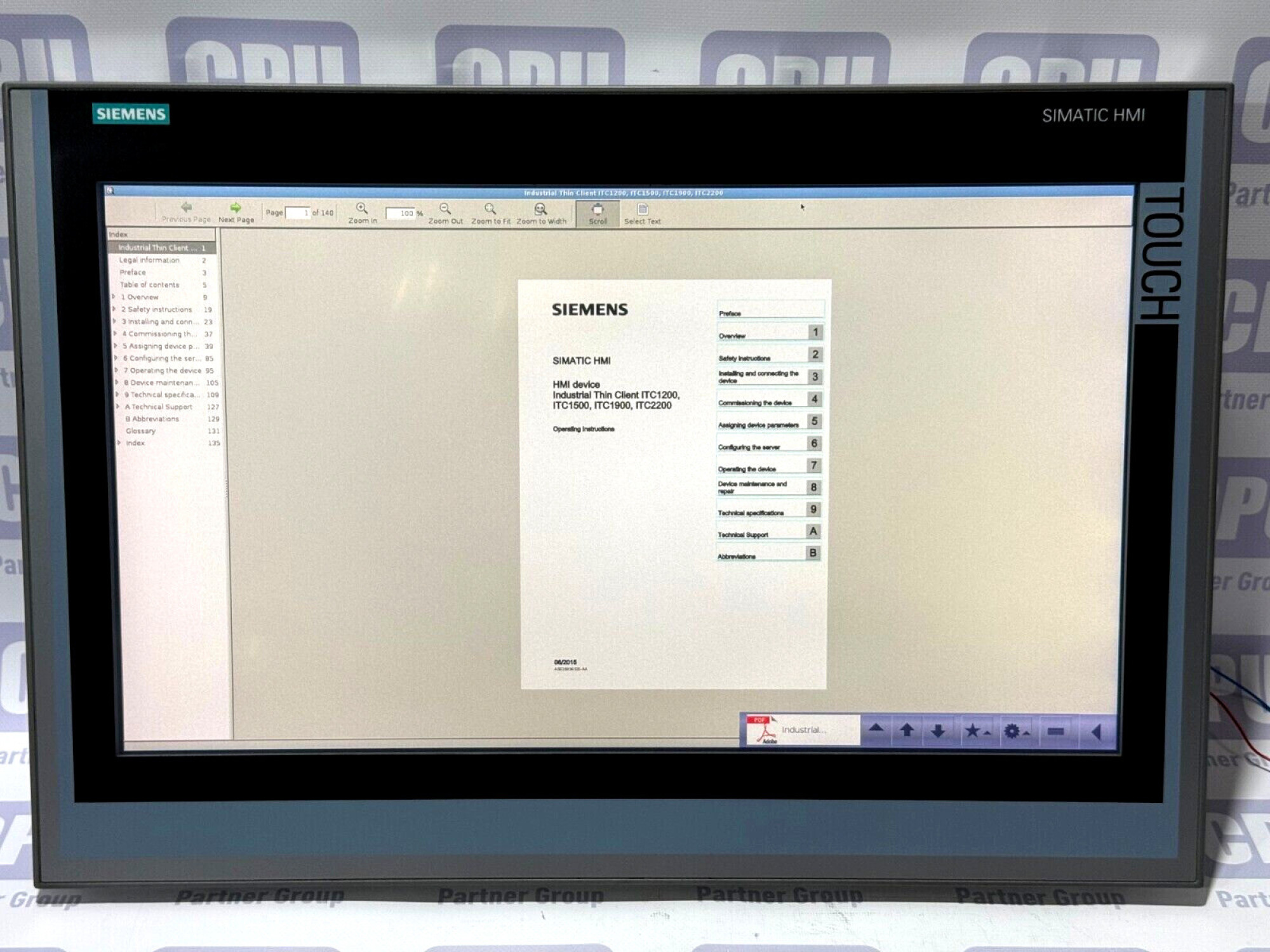

• Web Technologies: Integrated web browser with support for HTML5, JavaScript, CSS. A PDF reader is included.

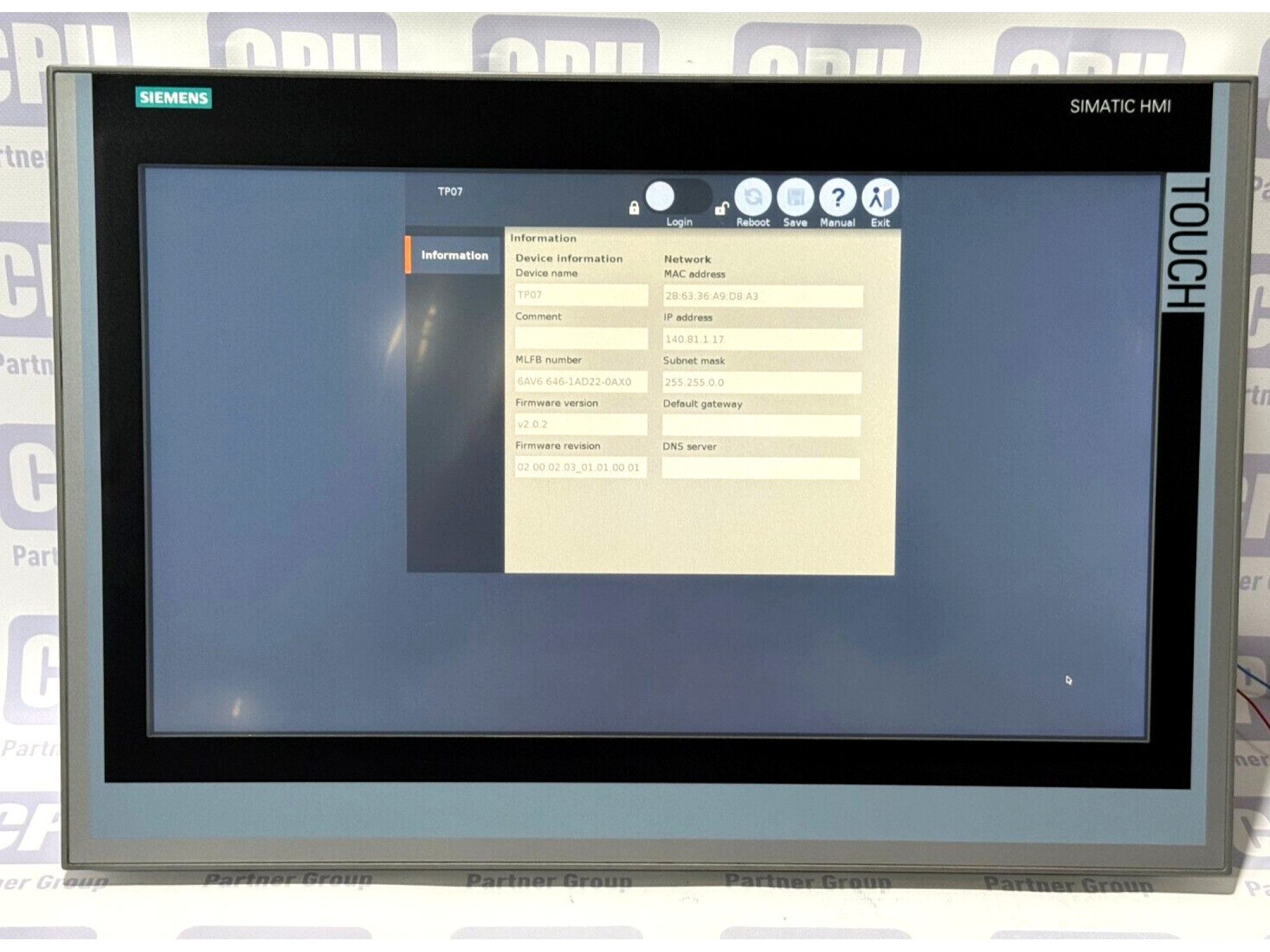

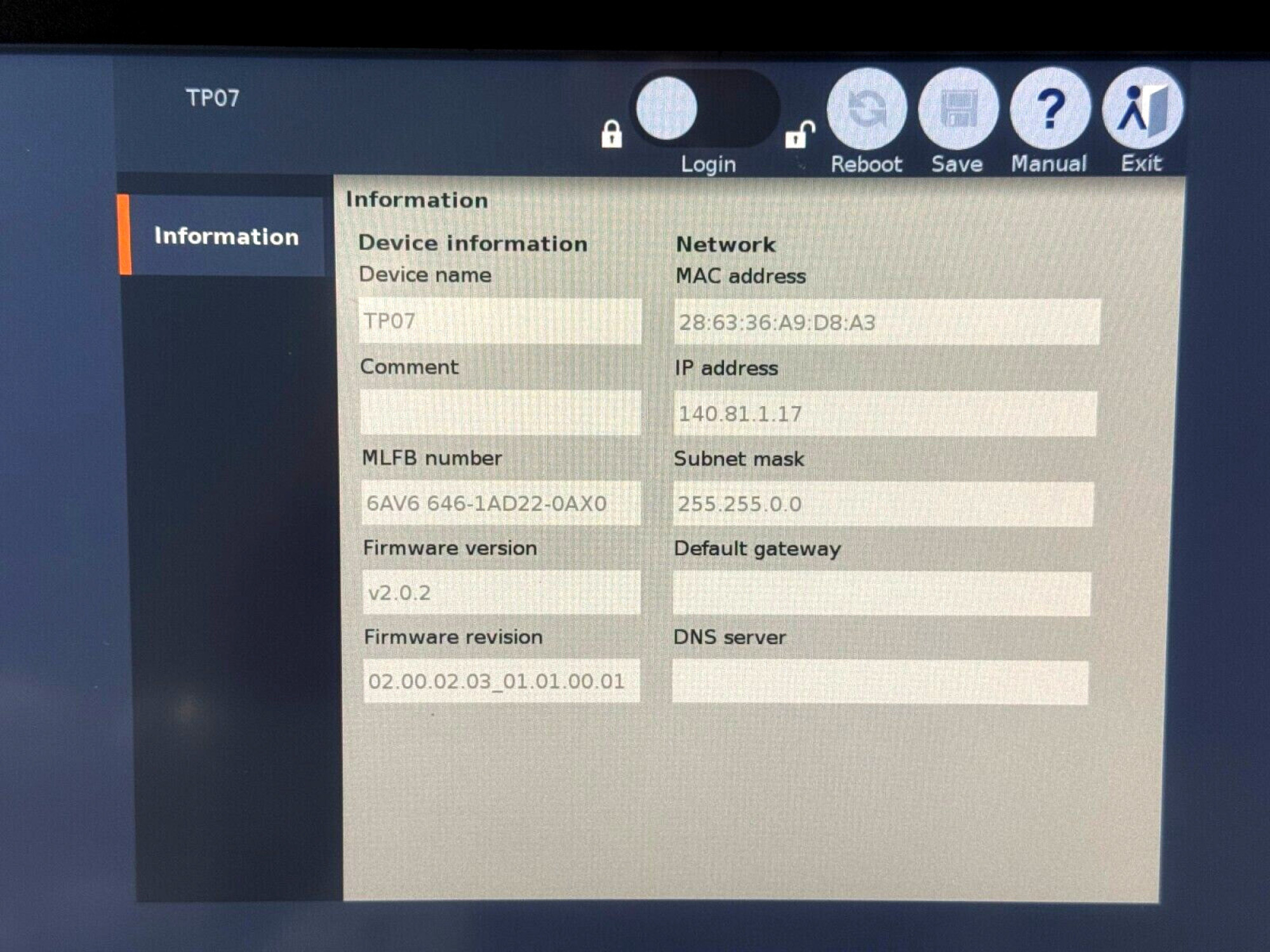

• Configuration: Local configuration is possible, as well as remote configuration using the Remote Configuration Center (RCC).

Certifications and Standards:

• The device has a CE mark and cULus, RCM, KC certifications.
• Certification for use in hazardous locations FM Class I Division 2 is in preparation.

Data sheet

https://cpupartnergroup.com/image/pdf/6AV66461AD220AX0_datasheet_en.pdf
