Moeller LE4-116-DX1 Digital Expansion Module

Moeller LE4-116-DX1 Digital Expansion Module

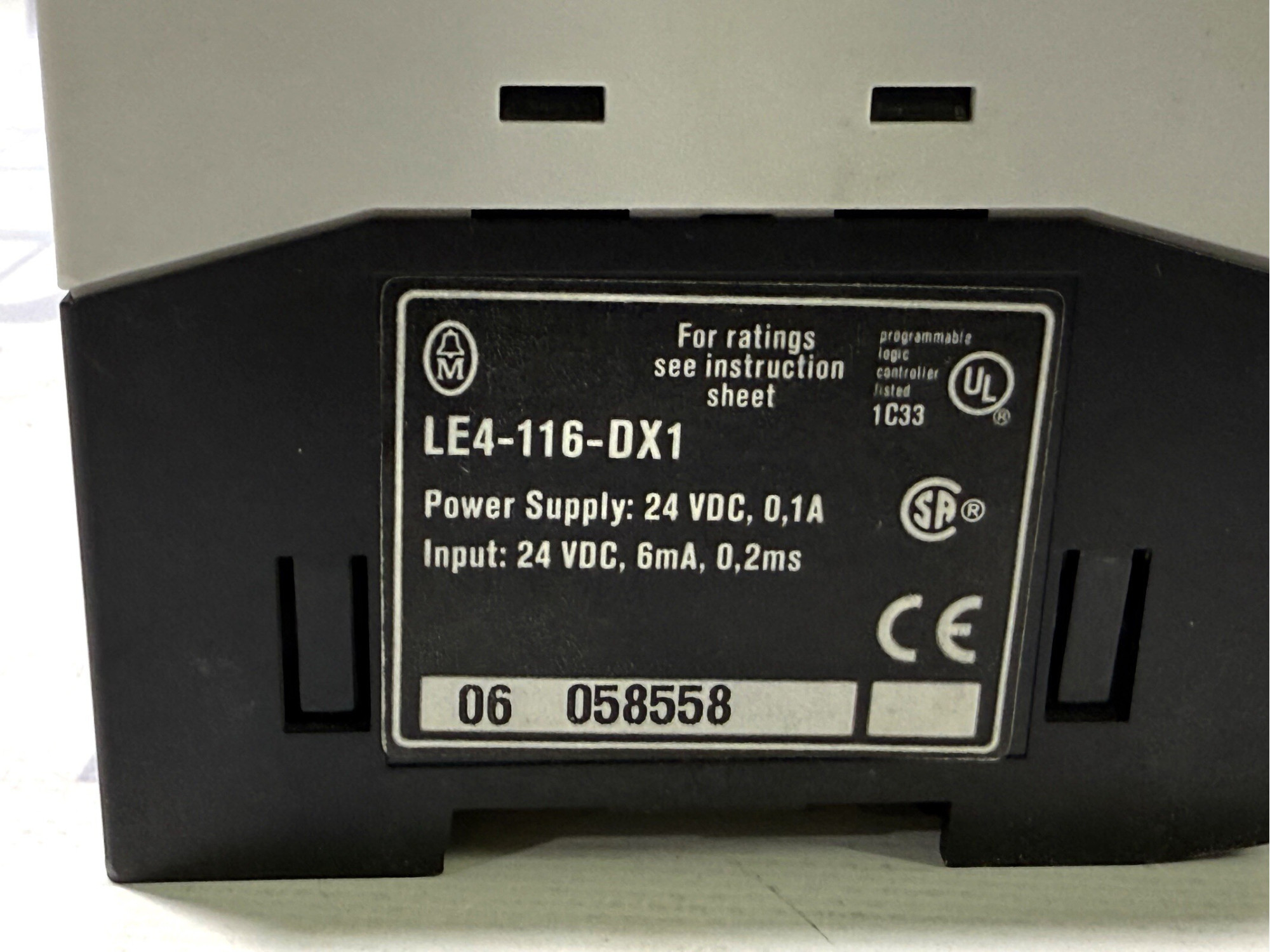

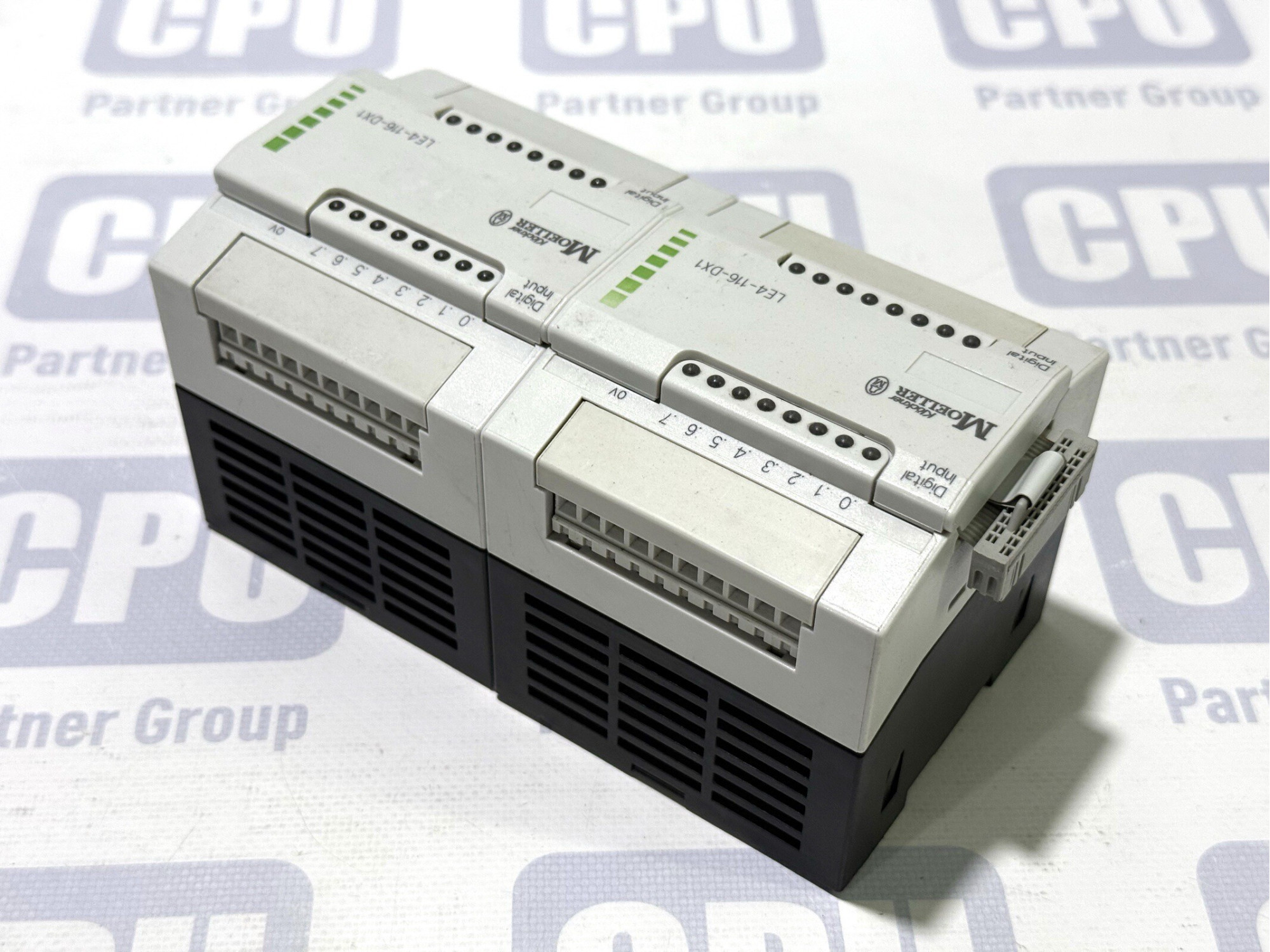

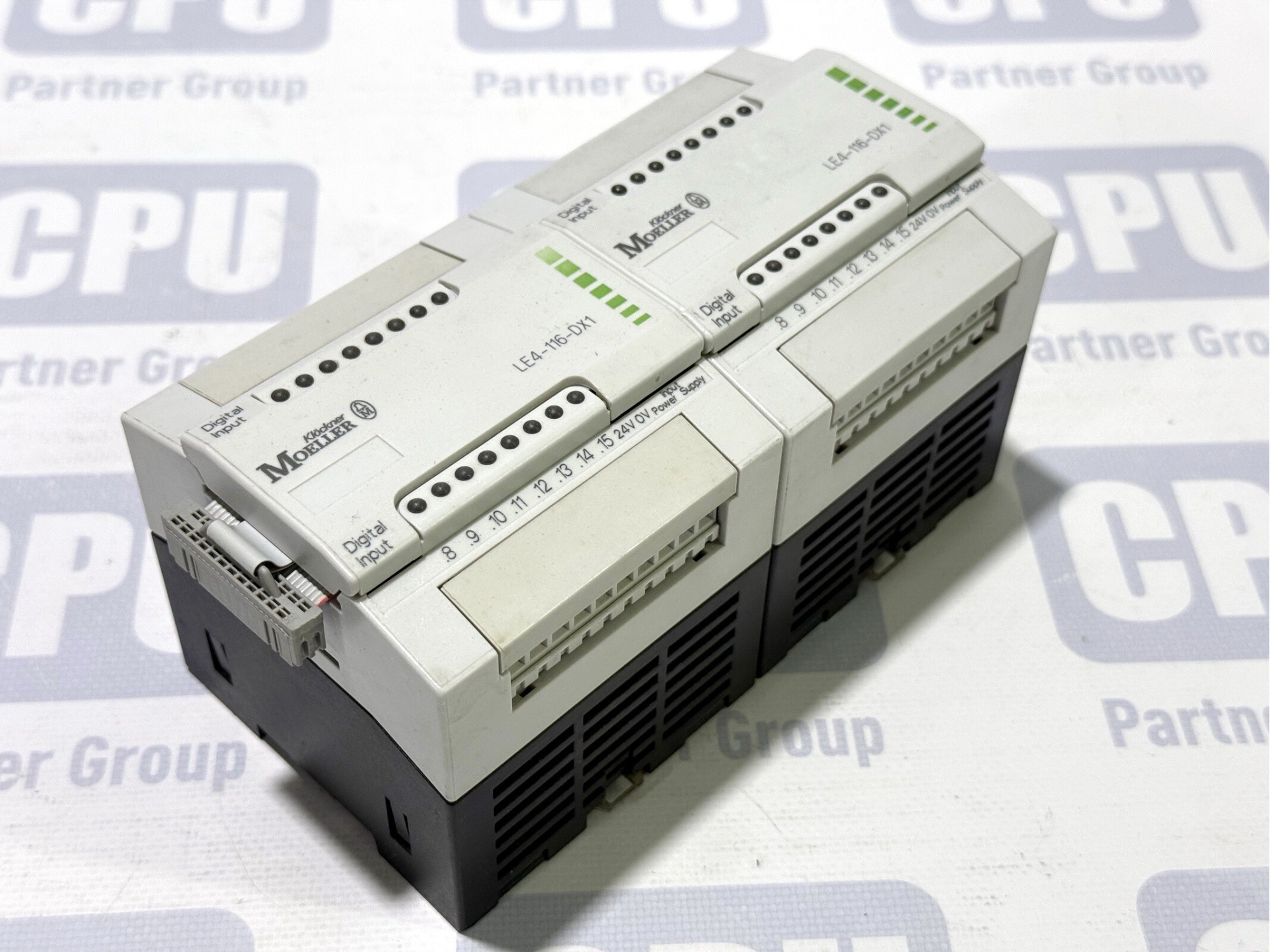

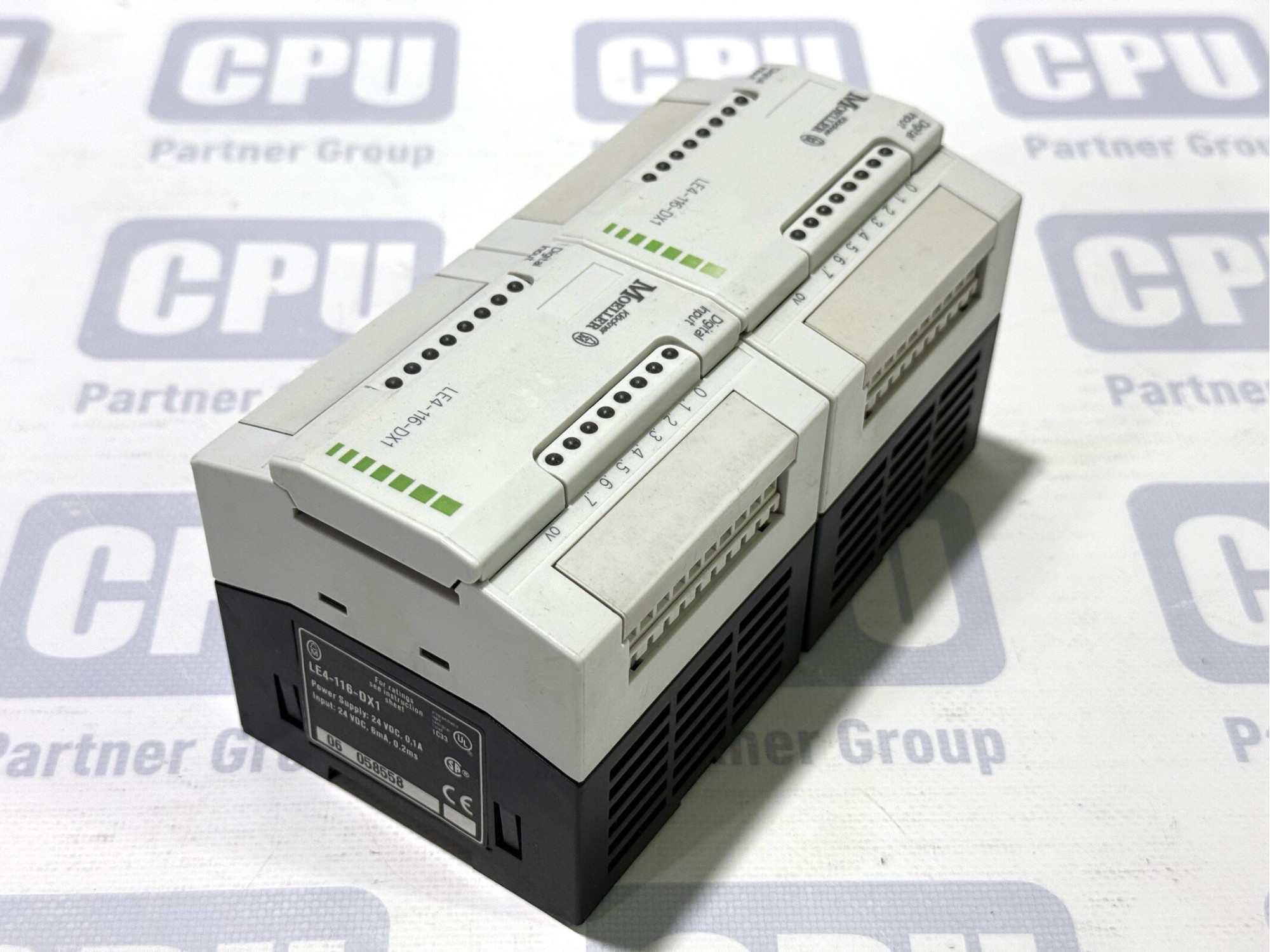

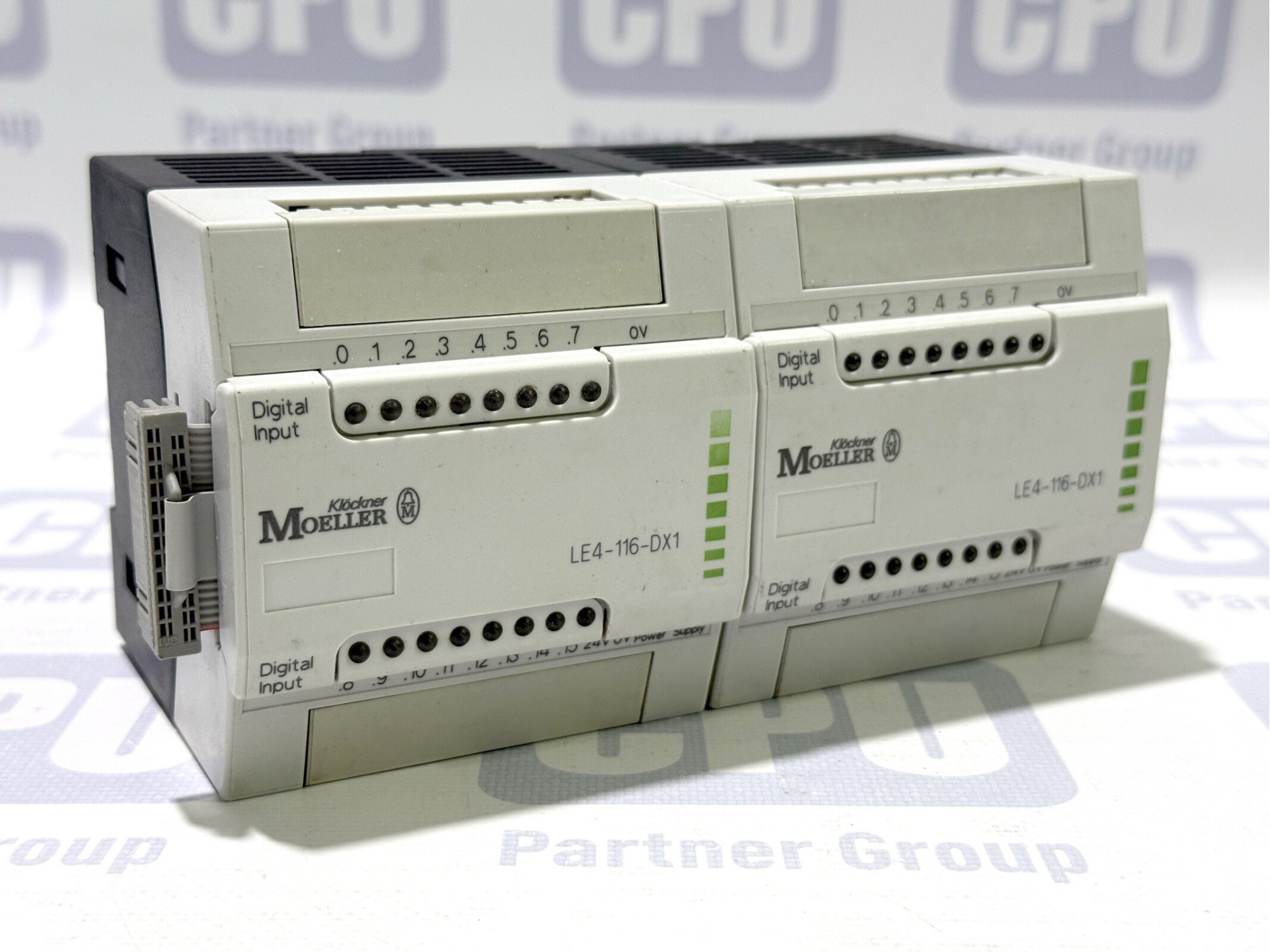

The Moeller LE4-116-DX1 is a digital expansion module designed for use with programmable logic controllers (PLCs) from the Moeller Easy series. It extends the I/O capacity of the main unit by providing additional digital inputs and outputs, allowing for more complex automation tasks and flexible system integration.

Technical Specifications:

• Type: Digital Expansion Module

• Input Channels: 8 digital inputs

• Input Voltage: 24 V DC

• Input Type: Sink/source

• Output Channels: 8 digital transistor outputs

• Output Type: Transistor (NPN or PNP, depending on configuration)

• Output Voltage: 24 V DC

• Output Current (per channel): Max. 0.5 A

• Power Supply: Supplied via the main control unit or external 24 V DC

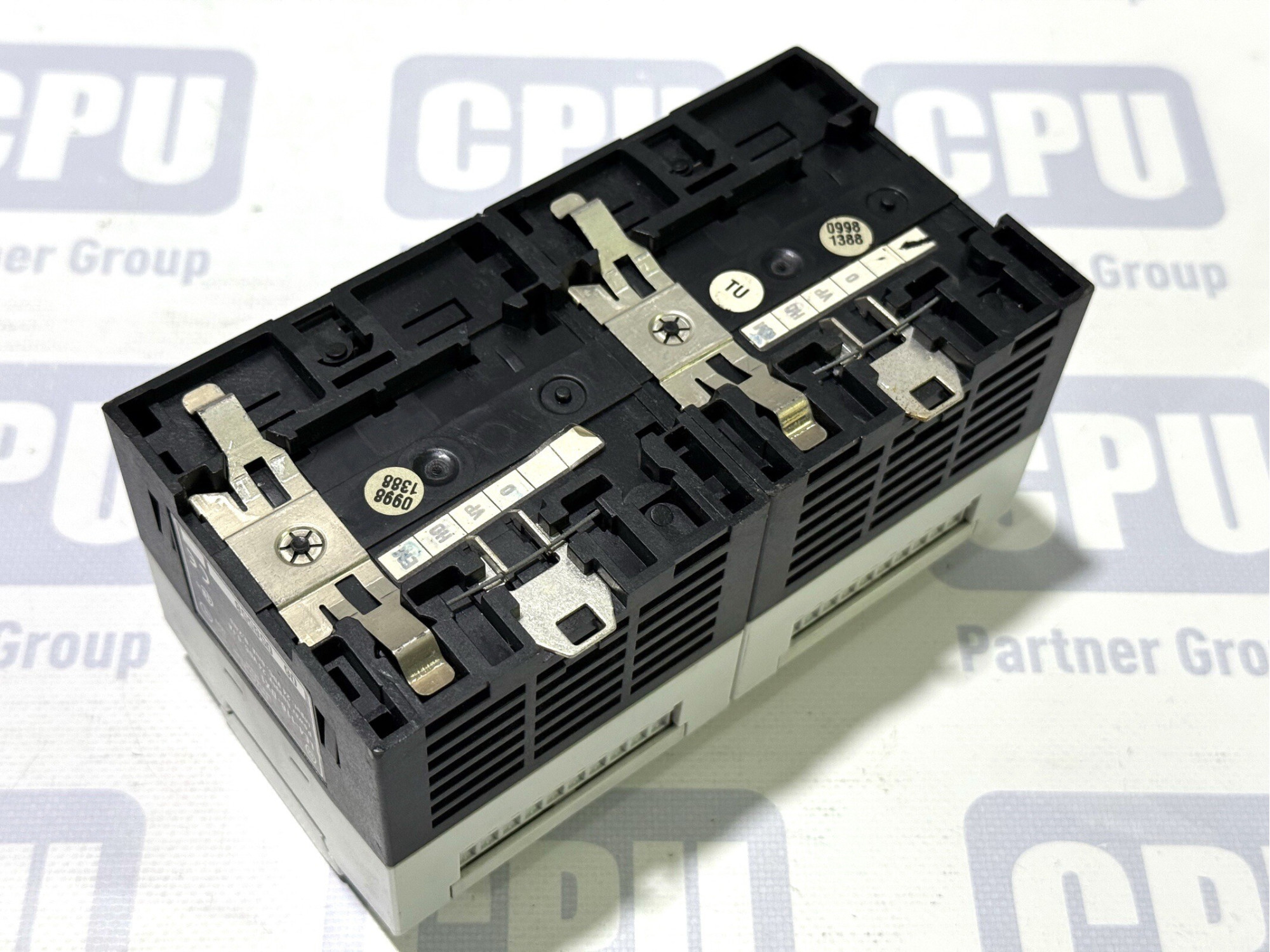

• Mounting: DIN rail

• Connection Type: Removable terminal blocks

• Dimensions: Compact housing for space-saving installation

• Operating Temperature: –10 °C to +55 °C

• Protection Class: IP20 (for indoor use)

• Compatibility: For use with Moeller EASY512/719/820/821 series and compatible devices

This module is commonly used in small to medium industrial automation systems for controlling machinery, lighting, HVAC, and other digital signal-driven devices.

On this page you will find the user manual for Moeller LE4-116-DX1. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Moeller LE4-116-DX1

https://cpupartnergroup.com/image/pdf/Moeller%20LE4-116-DX1.pdf
